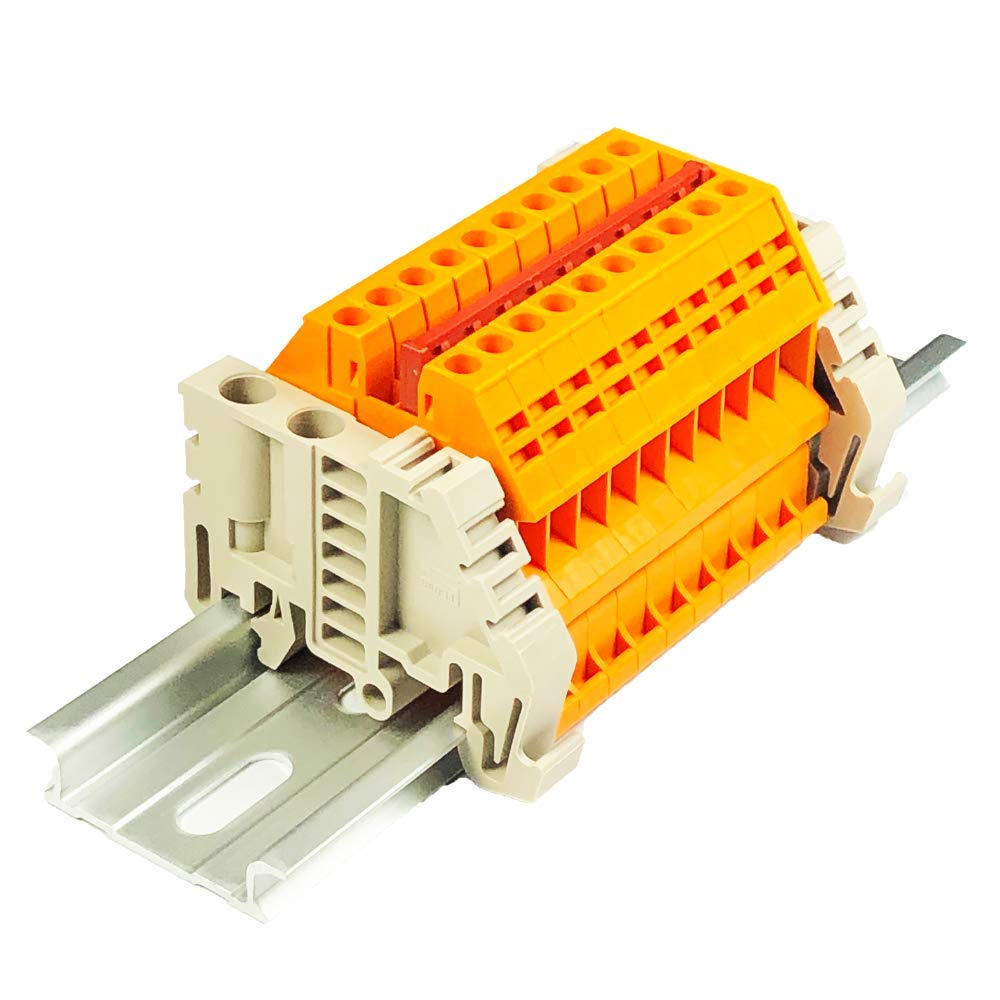

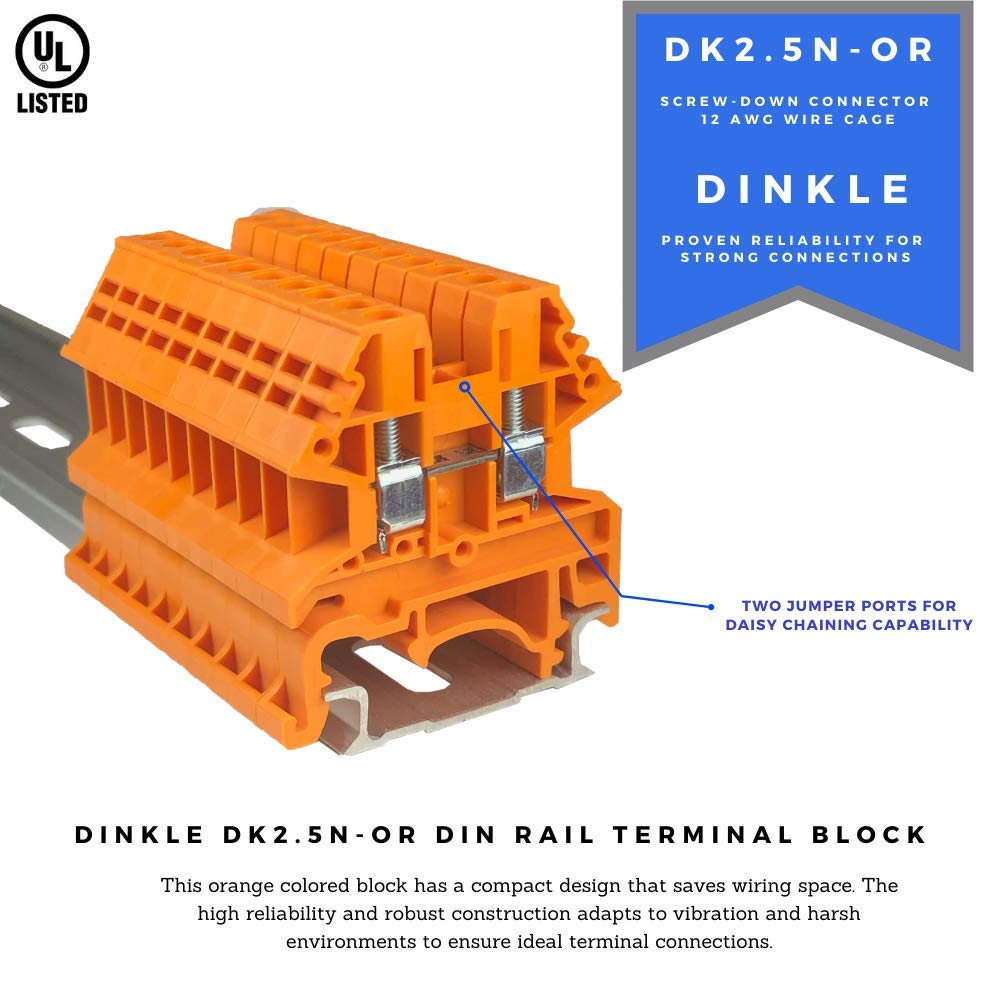

ICI Dinkle Power Distribution DK2.5N-OR 10 Gang Box Connector DIN Rail Terminal Blocks, 12-22 AWG, 20 Amp, 600 Volt Solar Combiner Orange

Brand: International Connector

Features:

• Assembly for Solar Combiner or Power Distribution
• UL 600V Rating
• UL 12-22 AWG Rating
• UL 20A Rating
• All terminals in common

Package Dimensions: 74x131x135

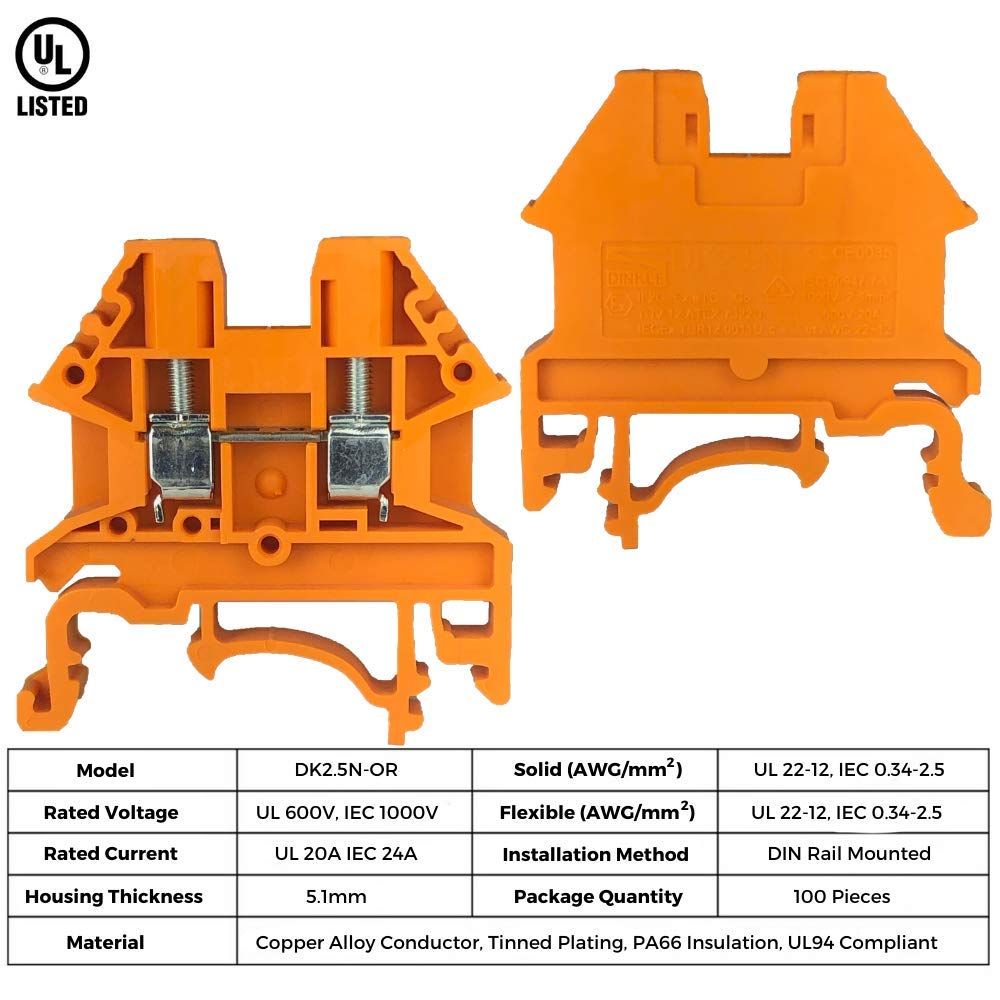

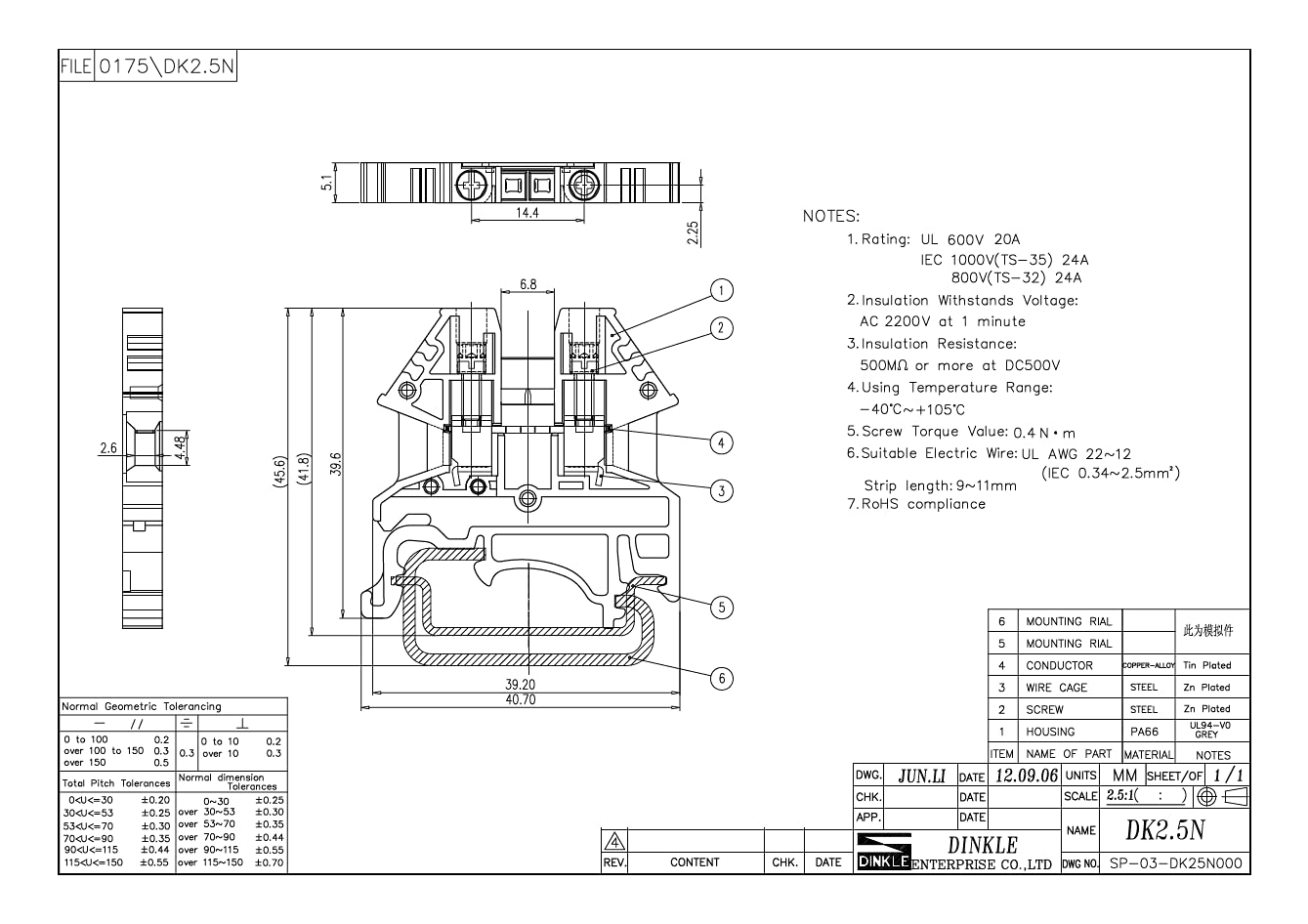

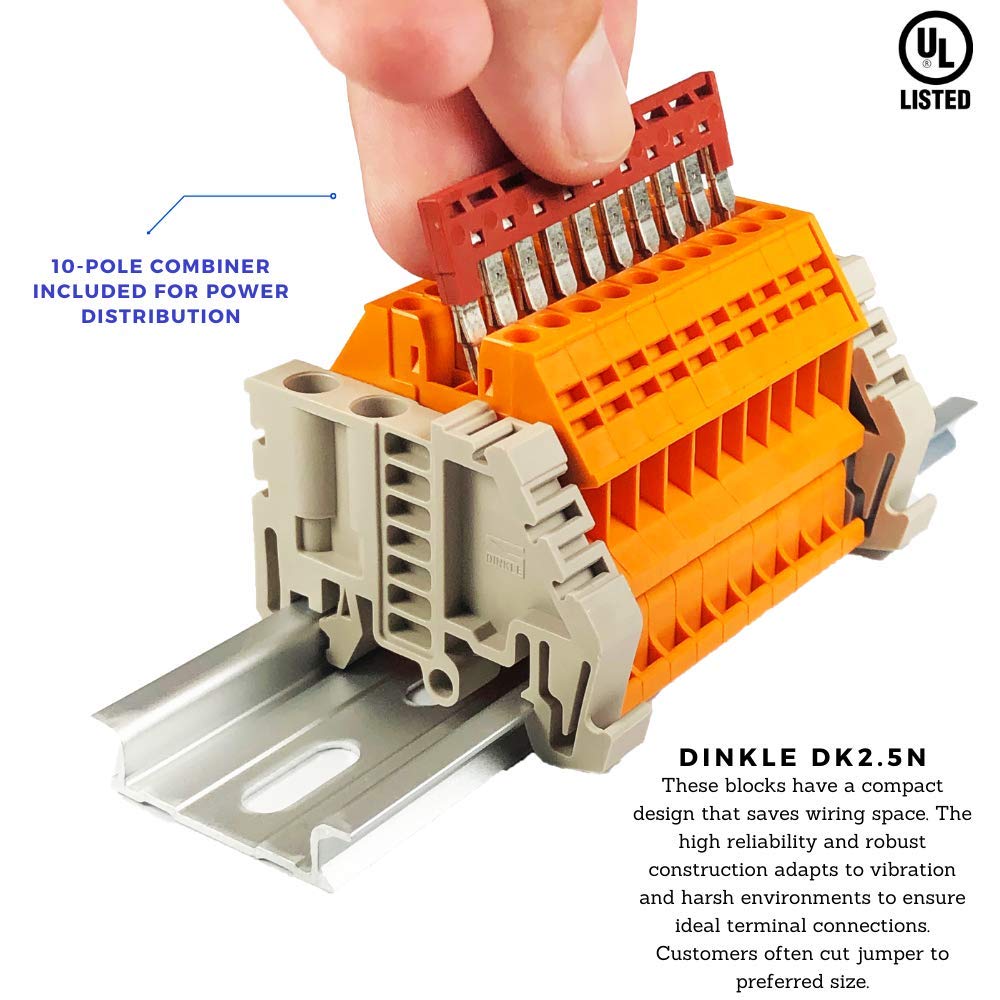

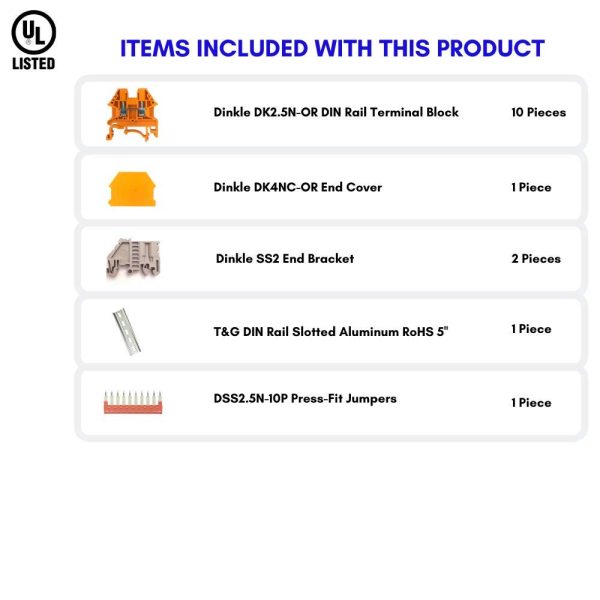

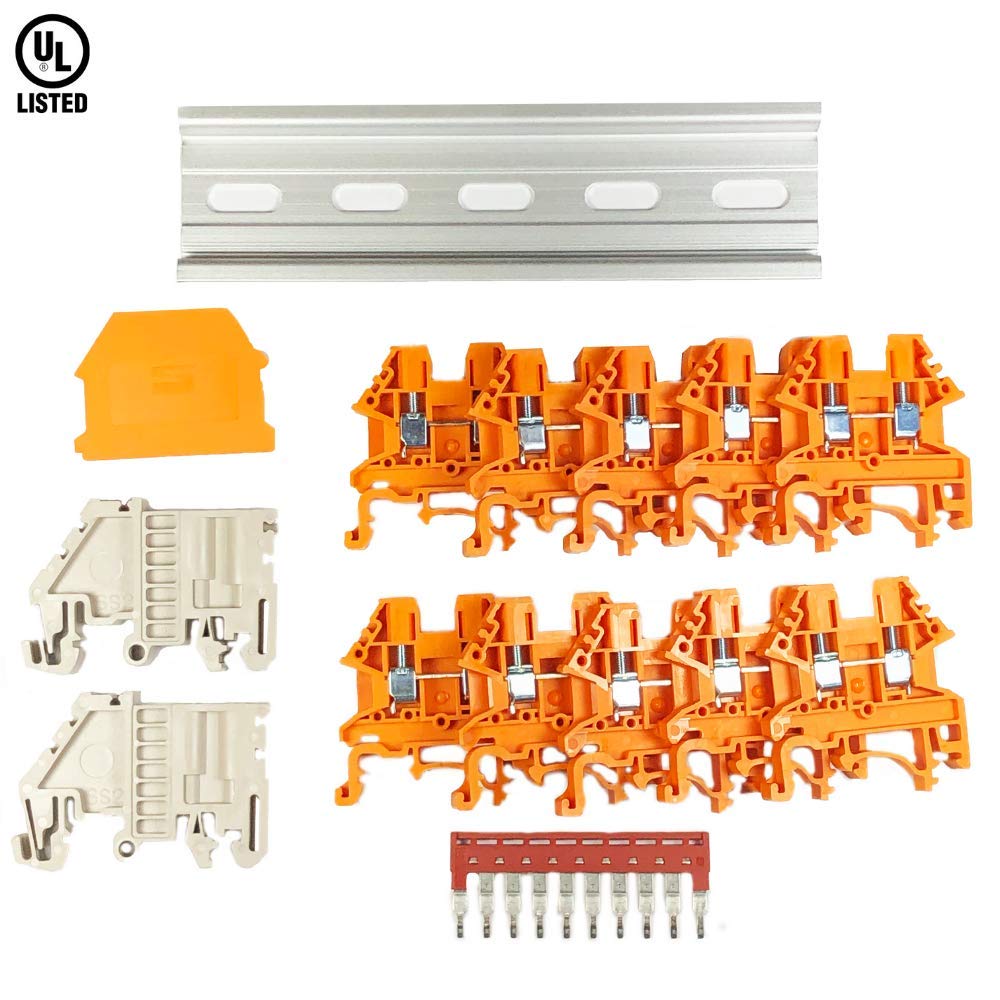

Details: Technical Data (UL) Rated Voltage: 600V Rate Current: 20A Conductor Cross-section, Solid (AWG): 22-12 Conductor Cross-section, Flexible (AWG): 22-12 Rated Impulse Withstand Voltage: 6KV Torque (N-m): 0.4 Screw: M2.5 Wire Strip Length: 9-11mm Insulating Material: PA TxHxW (mm): 5.1 x 39.6 x 40.5 (Individual Blocks) DIN Rail (mm): 35, 32 Jumper/Bridge: Press-fit/Insertion. This combiner includes 10 DK2.5N-OR Dinkle terminal blocks, 2 SS2 end brackets, 1 DK4NC-OR end cover, and a DSS2.5N-10P press-fit jumper, all mounted on a 5″ piece of aluminum RoHS rail. The 12 gauge inputs are all in common.

UPC: 737123111480
